DIY Spraybooth 3.0

Hey plamo nerds! I had a bit of free time over the weekend, and since I've got nothing on the workbench at the moment I decided to do some cleaning. I filled up a large trash bag with random junk, freeing up some extra space in my cabinet, which I immediately had to fill with something else because that's how my hyperactive brain works. A quick scan of my hobby equipment and my attention was drawn to the compact spraybooth. Why was I working with such a small booth when I had all this extra space anyway? It was time for an upgrade!

Click on the Read More link for the rest of this post...



This is the 3rd time I was building a DIY spraybooth, hence the title of the post, and I've gone over the basics in the past two designs, which you can find here:

DIY Portable Spraybooth
DIY Compact Spraybooth

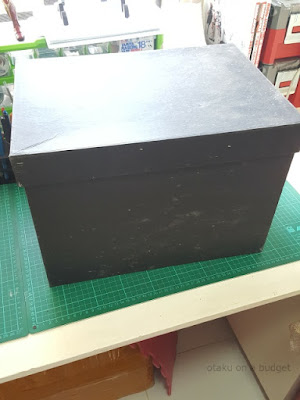

Both have their pros and cons and are suitable for different needs, but this time around I wanted something a bit more in sync with my transforming workbench. I had an empty filing box where I used to keep sprues, and it was the perfect size for the project. These thick cardboard boxes are usually available anywhere office supplies are sold. They're heavier than plastic bins of similar size, but are much easier to cut.

First I had to make a square hole in the bottom of the box, so my old exhaust fan could fit through it. The walls of the box are pretty thick (around 4-5mm) but a box cutter did the job just fine.

Next, I cut off about half of the ceiling so I could maneuver a painting-stick comfortably in front of the booth and not worry about the painted part coming in contact with the top wall. This improves the view a lot because my desk height has the booth sitting lower than eye level, so I'm spraying at a downwards angle rather than straight forward.

I had a bunch of LED lights intended for my display cabinet, but since I had some extra ones I installed some into the booth as well. The lights were attached to the booth's ceiling with double sided mounting tape. They're powered by a 12v adapter which I then wired to the fan's power cord. This way both the lights and the fan are activated by one switch.

The compressor regulator was mounted to the side of the booth using twisty-ties.  The the box's handle holes made a nice window for the gauge to poke through. Now I can adjust the pressure and monitor the condensation in the water trap easily.

I made a filter using stacked cardboard strips. This was the most time consuming part of the build, but it's a great way to recycle grocery boxes. Since it was designed to be a tight fit, loops of twisty ties were strung through both ends so the filter could be pulled out easily when it needs to be replaced. The filter sits right behind the led lights, about 2 inches from the fan.

With all components in place, I did a quick tissue test to make sure air was being drawn in from all corners of the filter. I plan on adding a bag of activated charcoal or a carbon mat between the fan and the cardboard filter to help control the smell of paint, but other than that I consider this build complete!

The new booth is nearly double the size of my previous setup, has built-in lights, a regulator and water-trap, is able to keep all of my airbrushing chemicals when not in use, and still fits nicely into my work cabinet. I'd say it's a significant upgrade from my old folding design!



Side projects like this are a great way to counter build burnouts and upgrade your hobby gear at the same time! If you have any questions or suggestions for this design, feel free to put them in the comments section below. Until next time, keep building plamo!
